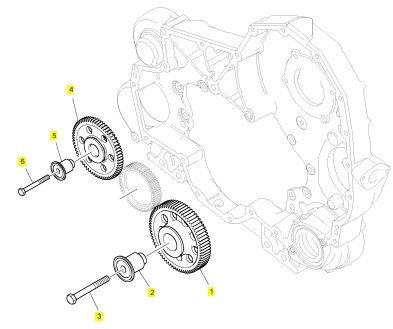

威爾遜柴油發電機組2206配件CH12291惰輪傳動機構

項序 零配件號碼 最近的零配件號碼  描述

1 CH12291 1 CH12291 惰輪傳動機構

2 CH12289 1 CH12289 軸

3 CH12293 1 CH12293 螺拴

4 CH12290 1 CH12290 傳動機構

5 CH10181 1 CH10181 軸

6 CH10243 1 CH10243 螺拴

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CH12291 1 CH12291 IDLER GEAR

2 CH12289 1 CH12289 SHAFT

3 CH12293 1 CH12293 BOLT

4 CH12290 1 CH12290 GEAR

5 CH10181 1 CH10181 SHAFT

6 CH10243 1 CH10243 BOLT

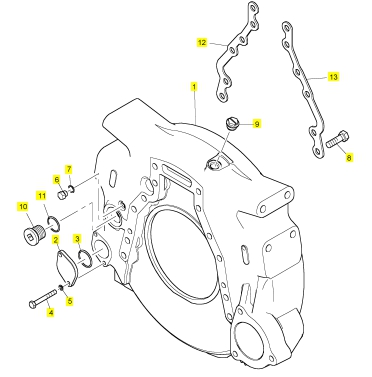

項序 零配件號碼 最近的零配件號碼  描述

1 CH12535 1 CH12535 飛輪殼

2 CH10165 1 CH10165 蓋

3 CH11892 1 CH11892 密封墊O形圈

4 CH12449 2 CH12449 螺拴

5 CH10277 2 CH10277 墊圈

6 T400249 1 T400249 堵塞

7 T409315 1 T409315 密封墊O形圈

8 CH12151 12 CH12151 螺拴

9 T401037 3 T401037 堵塞

10 CH10291 1 CH10291 堵塞

11 T400544 1 T400544 密封墊O形圈

12 CH12536 1 CH12536 間隔器

13 CH12536 1 CH12536 間隔器

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CH12535 1 CH12535 FLYWHEEL HOUSING

2 CH10165 1 CH10165 COVER

3 CH11892 1 CH11892 SEAL - O RING

4 CH12449 2 CH12449 BOLT

5 CH10277 2 CH10277 WASHER

6 T400249 1 T400249 PLUG

7 T409315 1 T409315 SEAL - O RING

8 CH12151 12 CH12151 BOLT

9 T401037 3 T401037 PLUG

10 CH10291 1 CH10291 PLUG

11 T400544 1 T400544 SEAL - O RING

12 CH12536 1 CH12536 SPACER

13 CH12536 1 CH12536 SPACER
