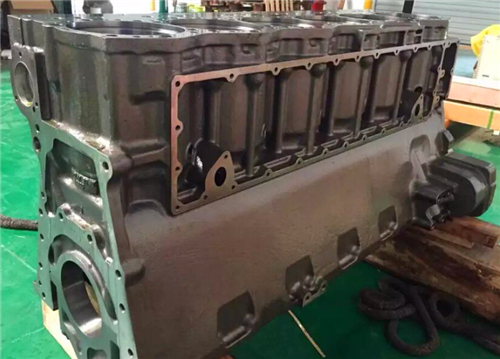

perkins CH11178缸體

項序 零配件號碼 最近的零配件號碼  描述

1 CH11178 1                  缸體組件

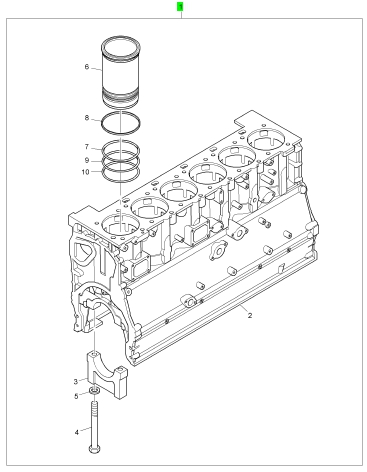

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CH11178 1 Check History CYLINDER BLOCK ASSEMBLY

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2 1 CYLINDER BLOCK

3 7 BEARING CAP

4 CH10679 14 CH10679 BOLT

5 CH10672 14 CH10672 WASHER

6 CH11278 6 CH11180 LINER - PRESS FIT

7 CH11179 6 CH11179 SEAL - OIL

8 CH10673 6 CH10673 BAND

9 CH10674 6 CH10674 SEAL - OIL

10 CH10677 6 CH10677 SEAL - OIL

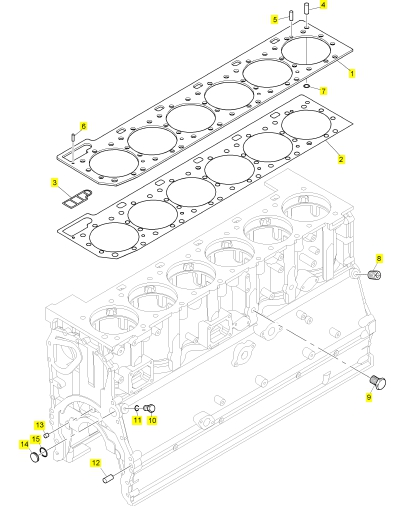

Perkins柴油發動機配件CH10662

項序 零配件號碼 最近的零配件號碼  描述

1 CH10662 1 CH10662 間隔器

2 1 密封墊

3 1 密封墊

4 CH10661 1 CH10661 合釘

5 CH10656 1 CH10656 合釘

6 CH10659 1 CH10659 合釘

7 CH10660 1 CH10660 密封墊O形圈

8 CH10221 5 CH10221 堵塞

9 CH10568 2 CH11963 堵塞

10 CH10664 1 CH10664 堵塞

11 CH10667 1 CH10667 密封墊O形圈

12 CH10658 2 CH10658 合釘

13 CH10663 1 CH10663 堵塞

14 CH10666 2 CH10666 堵塞

15 CH10657 2 CH10657 密封墊O形圈

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CH10662 1 CH10662 SPACER

2 1 GASKET

3 1 SEAL

4 CH10661 1 CH10661 DOWEL

5 CH10656 1 CH10656 DOWEL

6 CH10659 1 CH10659 DOWEL

7 CH10660 1 CH10660 SEAL - O RING

8 CH10221 5 CH10221 PLUG

9 CH10568 2 CH11963 PLUG

10 CH10664 1 CH10664 PLUG

11 CH10667 1 CH10667 SEAL - O RING

12 CH10658 2 CH10658 DOWEL

13 CH10663 1 CH10663 PLUG

14 CH10666 2 CH10666 PLUG

15 CH10657 2 CH10657 SEAL - O RING
