如何清洗與更換帕金斯柴油發動機機柴油過濾器

如何清洗與更換帕金斯柴油發動機機柴油過濾器

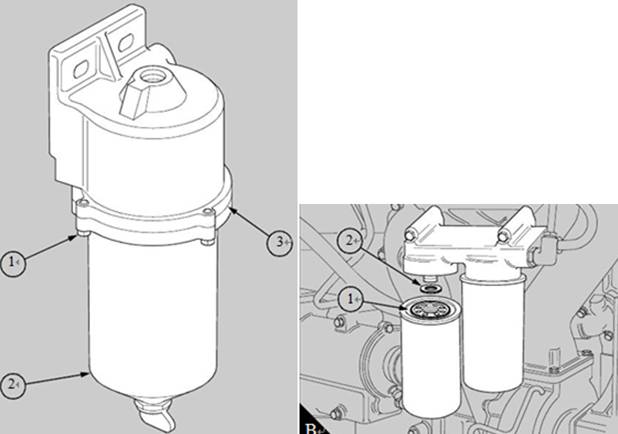

1 Remove the three bolts (A1) and remove the filter

1拆下三個螺栓（A1）和刪除篩選器

bowl (A2).

碗（A2）。

2 Clean all of the components with paraffin and dry

2清潔所有的部件，石蠟和干燥

them with a compressed air jet.

他們用壓縮空氣噴射。

3 Fit the bowl to the filter head, together with a new

3將碗裝在過濾器頭上，連同一個新的

sealing ring. Align the clamp ring (A3) and fasten it

密封圈。將夾緊環（A3）和固定

with the three bolts.

用三個螺栓。

Early engines can be fitted with filters that have

早期的引擎可以安裝有過濾器

elements which can be cleaned. These elements

可清洗的元素。這些元素

should be removed, cleaned with fuel oil and dried

應清除，用燃油清洗和干燥

with a compressed air jet.

用壓縮空氣噴射。

How to renew the canister of the main fuel

如何更新主燃料罐

The main fuel filter is at the rear of the engine on the

主燃油濾清器位于Perkins3012發動機后部的后部

‘B’ bank side and has two canisters. Both canisters

B銀行邊有兩罐。兩罐

must be renewed at the same time.

必須在同一時間更新。

1 Clean the area around the filter and remove the fuel

1清洗過濾器周圍的區域并移除燃料

filter canisters. If necessary, use a strap wrench.

過濾罐。如果有必要，使用帶扳手。

Discard the canisters.

廢罐。

2 Check that the sealing ring (B1) is fitted correctly to

2檢查密封圈（B1）正確安裝到

each new canister and clean the contact faces of the

每一個新的罐和干凈的接觸面

filter head.

濾頭。

3 Lubricate the top of the canister seal (B1) with clean

3潤滑密封的罐頂（B1）與清潔

fuel oil and renew the sealing ring (B2) on the adaptor.

燃料油更換密封圈（B2）的適配器。

4 Fit the new canisters to their threaded adaptors and

4安裝新的濾毒罐的螺紋接頭和

tighten each canister until the sealing ring just comes

擰緊每一罐直到密封環才出現

into contact with the filter head. Continue to tighten

接觸過濾頭。繼續收緊

overtighten.

過緊。

After the fuel filter canisters have been renewed,

在燃料過濾器罐已更新，

eliminate air from the low pressure fuel system as
